High flying

Wind farms are expanding around the world. This is good for climate change. Wind turbines are being installed on the high seas with nacelle heights of more than 100 meters and rotor diameters of nearly 170 meters. This increases both the electricity yield and economic efficiency. Freudenberg is aiding wind power’s conquest with high performance components and materials.

For German speakers, the name may have a military overtone, but it is in fact a designation for a reef in the Baltic Sea lying beneath the ocean’s surface. Here, in the middle of the ocean between Germany, Denmark and Sweden, “Kriegers Flak” wind farm is rising from the sea to an area of over 132 square kilometers. At dizzying heights of more than 100 meters, massive towers are being erected bearing nacelles and 80-meter blades, giving the wind turbines a total height of almost 200 meters. By comparison, Cologne Cathedral is only 157 meters high. The latest generation of 72 turbines being built at Kriegers Flak are among the most powerful in the world; each individual turbine can generate up to eight megawatts of electricity. And with good reason. The more powerful turbines require smaller foundations, fewer towers and fewer cables relative to the energy yield – and can thus be run more efficiently. More and more turbines can now operate without government support. Wind power is thus being established as an independent, climate friendly energy form.

0 meters

high, the wind turbines at “Kriegers Flak” wind farm are higher than Cologne Cathedral.

Seals must withstand high winds

Multi-megawatt wind farms on the high seas bring more than higher yields. Even though the power generated by each turbine increases with the blade surface, the harvested winds place greater strain on components such as the primary bearings or the rotor blades. The same applies to the seals that Freudenberg Sealing Technologies develops for wind turbines. The seals help keep sand or salty water from penetrating machine elements through important interfaces such as where yaw bearings between the tower and nacelle meet, the rotor blade bearings as well as the primary bearings. They also help make sure that lubricants remain securely in the interior. Increased winds make this all much more difficult. Freudenberg Sealing Technologies has thus developed a special Seventomatic seal for extremely large shaft diameters. Instead of the old radial springs, Seventomatic seals use a meander spring, which makes the seal less susceptible to big movements and dislocation of the main bearing. The greater flexibility enables better compensation exceeding several millimeters and prevents unwanted leaks.

Offshore-Park

Freudenberg is aiding wind power’s conquest with high performance components and materials.

Three specialty lubricants reduce friction

Wind turbines have an entire series of friction points where the use of specialty lubricants can help eliminate or alleviate wear and tear. The lubricants increase the wind turbine’s efficiency and component operating life – helping improve operating efficiency. Also, the less lubricant used, the lower the logistic expenses needed to organize lubricant replenishment, making maintenance more efficient, which can be very costly in offshore farms on the high seas.

The ultimate goal is to significantly improve the efficiency of energy generation and extend turbine lifecycles with our specialty lubricants for wind turbines.

Daniel Narnhammer, Head Global Business Team Wind Energy from Klüber Lubrication

Special oils are normally used in transmissions, while for the main bearings, the rotary bearings and bearings in the generator grease is used. The yaw gear drives used to shift the rotary blades and the nacelle to track the wind also need to be efficiently lubricated. Klüber Lubrication has developed a family of three special lubricants and precisely tailored them to the various applications, making them suitable for all the lubrication points in a wind turbine. The lubricants are biodegradable – whenever necessary for the application.

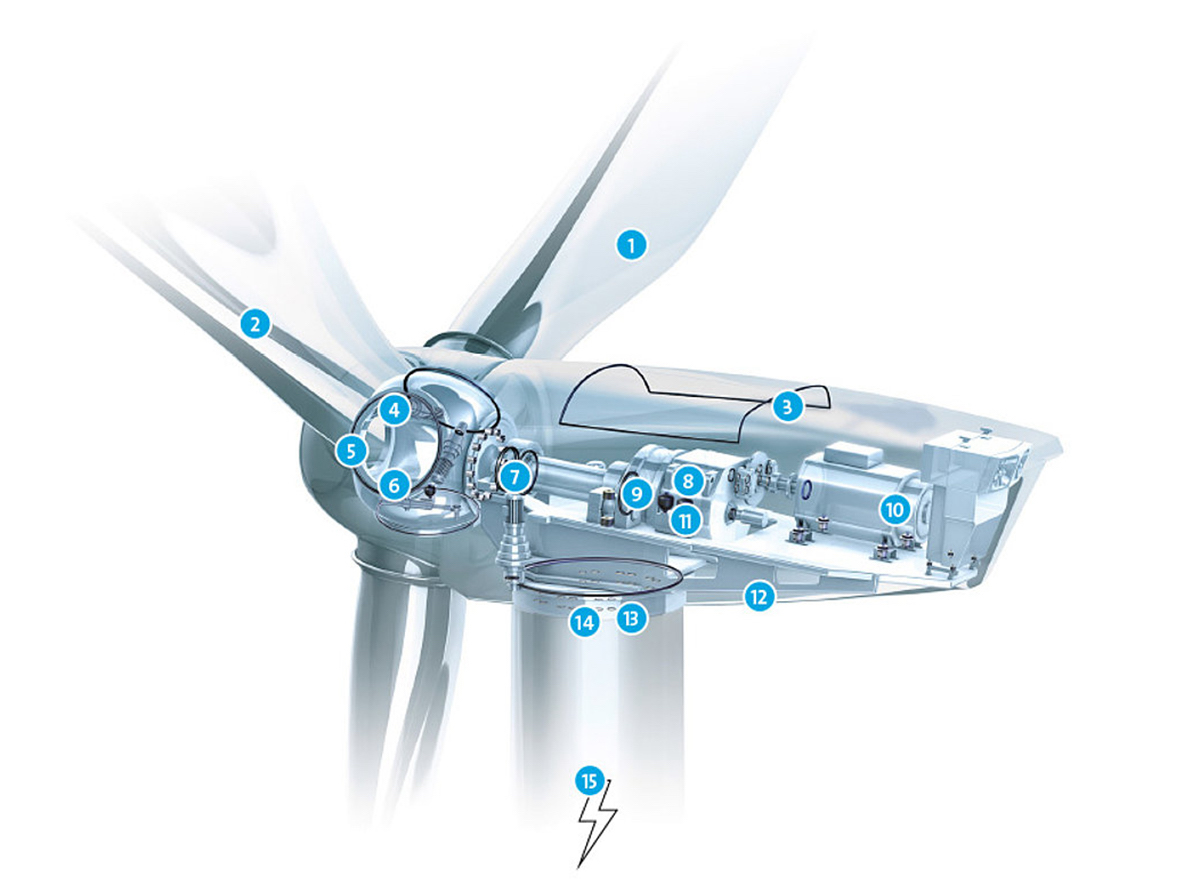

infographic high flying

Legend

  1. ROTOR BLADES // Chem -Trend release agents for production
  2. ROTOR BLADES (Other) // OKS biodegradable cleaning agents
  3. NACELLE COVER // Freudenberg Sealing Technologies profile seals
  4. ROTOR BLADE BEARING // Freudenberg Sealing Technologies enviromatic seals
  5. ROTOR BLADE BEARING AND GEAR DRIVE // Klüber Lubrication specialty greases
  6. BATTERY // Freudenberg Performance Materials fully ceramic separator
  7. MAIN BEARING // Freudenberg Sealing Technologies Seventomatic seals and Klüber Lubrication specialty greases
  8. TRANSMISSION // Freudenberg Sealing Technologies Simmerings and Klüber Lubrication specialty oils
  9. TRANSMISSION INPUT // Freudenberg Sealing Technologies radiamatic seals
  10. GENERATOR // Klüber Lubrication specialty greases
  11. DIAPHRAGM ACCUMULATOR // Freudenberg sealing Technologies diaphragm accumulator
  12. COMPONENTS AND MOUNTNGS // SurTec electroplating technology for corrosion protection and OKS specialty greases
  13. YAW GEAR DRIVE // Klüber Lubrication and OKS specialty greases and bonded coatings for assembly
  14. YAW BEARING // Freudenberg Sealing Technologies enviromatic seals
  15. CABLE // Freudenberg Performance Materials nonwovens

A broad portfolio for wind energy

In addition to lubricants, Freudenberg Group companies supply other specialty products: ChemTrend manufactures mold release agents needed in the manufacture of rotor blades – a very complex, extremely sophisticated manufacturing process. The blades are “baked” in molds. Thanks to mold release agent the components can be removed safely from the tool and without any damage to the surface. OKS supplies biodegradable cleaning agents, used to clean turbine blades during operations. SurTec manufactures chemical surface treatment products, such as those used to protect against corrosion, and which help to guarantee a long life for the components and fasteners.

Nonwovens to protect underwater cables

All the components in a wind turbine are designed to have rotation movement driven by the wind transformed into electrical current and transported to the end customer with as little loss as possible. At sea, special submarine cables are used to transmit electricity.

Technical nonwovens from Freudenberg help protect these cables. Even though the submarine cables are placed in a trench dug for them on the seabed, they can still be damaged by sharp edges. Neither can the submarine cable always be protected from anchors and other mechanical forces. Should there be any damage, a super-absorbent polymer powder in the Freudenberg nonwoven material causes it to swell, blocking off the hollow space in the submarine cable and quickly preventing water penetration.

“Our specially treated technical nonwovens not only help protect power cables in the event of damage through water penetration, but increasingly support the functionality and durability of high-voltage cables used to transmit renewable energy,” explains Dr. Matthias Schuster from Freudenberg Performance Materials.

Our specially treated technical nonwovens not only help protect power cables in the event of damage through water penetration, but increasingly support the functionality and durability of high-voltage cables used to transmit renewable energy.

Dr. Matthias Schuster, Head of Global Sales Energy, Freudenberg Performance Materials

Excellent conductivity and very high tensile strength

In addition to excellent swelling behavior, the Freudenberg Performance Materials nonwoven is also characterized by excellent conductivity and very high tensile strength.

This example also illustrates, that in many places, Freudenberg solutions help wind turbines around the world to generate more environmentally friendly electricity and also operate more efficiently at the same time.
